The Travis Tiny Home/ Park Model RV

Overview

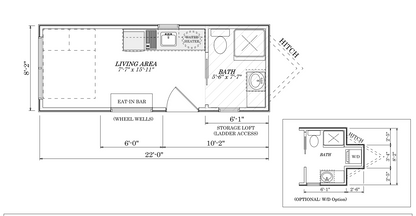

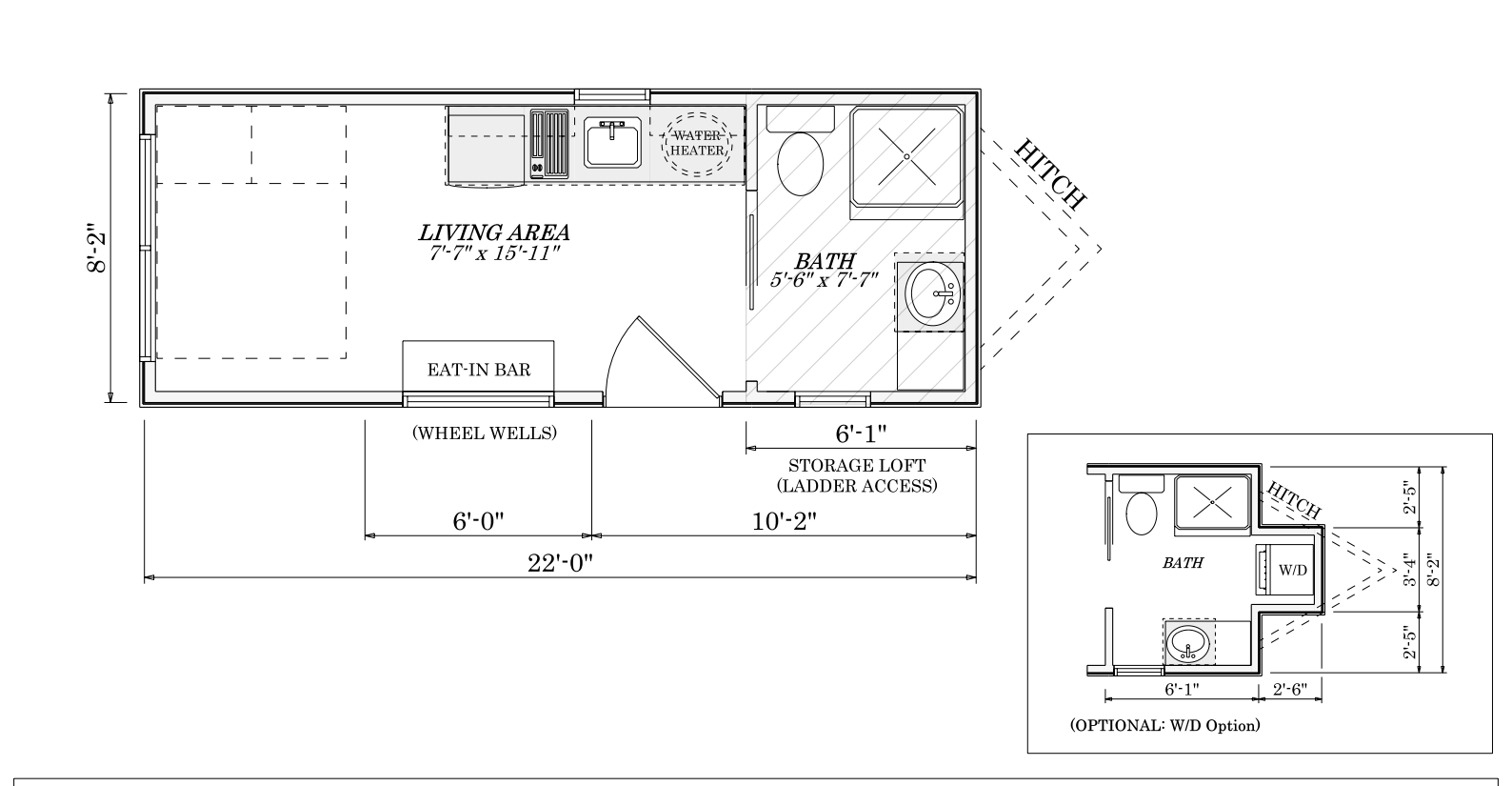

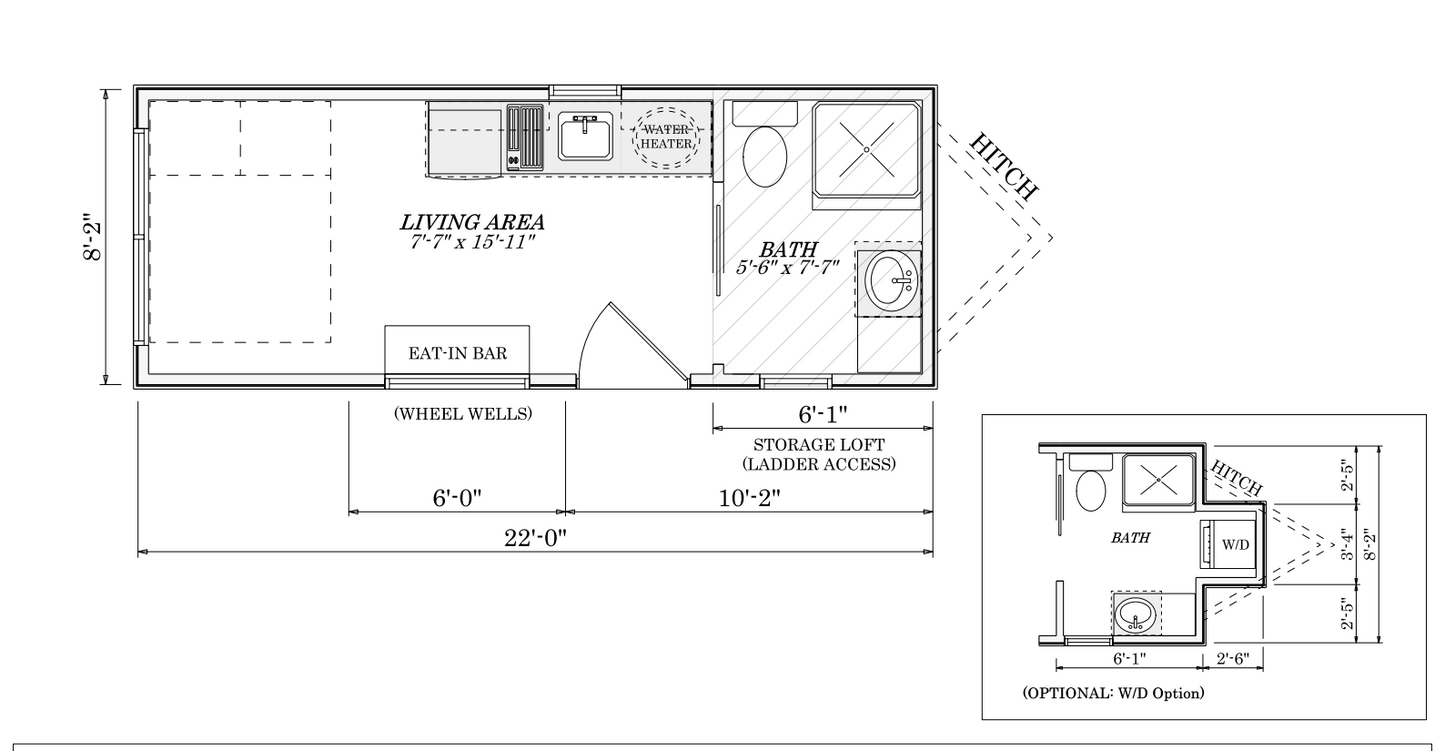

● 8’5′′ wide x 22’3” long overall dimensions (outside measurements)
● 8’2” wide x 22’ long = 179 Sq. Ft.
● 1 main floor bedroom plus a small loft for storage
● 1 full bathroom
● RVIA Seal Built to ANSI A119.5 Standards
● 8’ wide x 22’ long tandem axle trailer

Exterior Designs

● 28 gauge premier rib, metal siding (color TBD)
● 28 gauge, premier rib metal roof (color TBD)
● 2”x 6” roof rafters, 24” on-center w/ 1/2” OSB underlayment & ice guard
● 2”x 6” floor joists, 16” on-center w/ 3⁄4” OSB subfloor
● 2”x 4” studs, 16” on-center
● OSB sheathing, house wrap & window tape
● Anderson 100 series, double pane single hung windows (Black)
● Provia 36” full glass entry door (black)
● Matte black door hardware w/ deadbolt

Insulation

● R13 closed cell spray foam in the walls
● R19 closed cell spray foam in the floor & ceiling

Interior Designs

● Luxury vinyl plank floor throughout (color TBD)
● Painted birch plywood walls and ceiling (painted white)
● Solid birch 2 panel bathroom door (painted white)
● Matte black door hardware
● Removable later to loft area

Kitchen Designs

● Custom base & top cabinets w/ flat panel doors (painted color TBD)
● 18” x 22” single bowl, drop-In stainless steel sink
● Matte black faucet & cabinet hardware
● Laminate countertops (color TBD)
● Soft close door hinges & drawer slider
● 2 burner counter mounted cooktop
● Under the counter mini fridge (black)
● Microwave free standing (black)
● 4′ built-In eating bar (wood stained)

Bathroom Designs

● 3’ x 3’ fiberglass shower one piece unit (white)
● Matte black shower head & faucets
● 24′′ x 24′′ custom vanity w/ cultured marble top with linen closet
● Standard elongated toilet (white)
● Exhaust vent fan / light combo
● Towel bar, toilet paper holder, shower rod (black)

Utilities

● 19 gallon electric water heater
● Interior outlets (GFCI) & switches w/ (white covers)
● Recessed lights throughout
● 1 ceiling fan / light combo (black)
● 1 exterior wall light (black)
● 1 GFCI exterior outlet w/ cover
● Bosch ductless mini split 1 outside and 1 inside unit
● Safety features include, fire extinguisher, smoke & fire alarms
● 50 AMP breaker box w/ conduit for direct tie-In
● Plumbing ready to tie into 3” pipe
● Water line ready to connect to water supply
● 1 frost resistant exterior faucet

Add-Ons & Upgrades
● Corrugated metal exterior siding 1⁄4” ridges (color TBD) + $1,200.00
● Corrugated metal exterior roof 1⁄4” ridges (color TBD) + $800.00
● Premier legacy rib textured exterior roof + $500.00
● Vinyl board & batten exterior siding 8” wide (color TBD) + $750.00
● Log exterior half round siding (stained color TBD) + $5,300.00
● Metal skirting material only + $1,300.00
● Pine T&G interior walls (clear finish) + $3,900.00
● Pine T&G interior ceiling (clear finish) + $1,900.00
● Pine T&G interior ceiling (dark stain finish) + $2,200.00
● Poplar nickel gap interior walls (painted) + $7,800.00
● Quartz countertops + $1,800.00
● Pine cabinets (clear finish) - $500.00
● Butcher block kitchen countertop stained (color TBD) + $1,400.00
● Tile backsplash kitchen (subway tile white) + $2,000.00
● Incinerating toilet +$5,000.00
● Composting toilet +$4,000.00
● Queen sized bed frame w/ storage drawers +$4,375.00
● 74′′ tall queen sized headboard w/ storage +$5,295.00
● Bump out for wash/dryer includes stacked laundry center unit + $4,800.00
