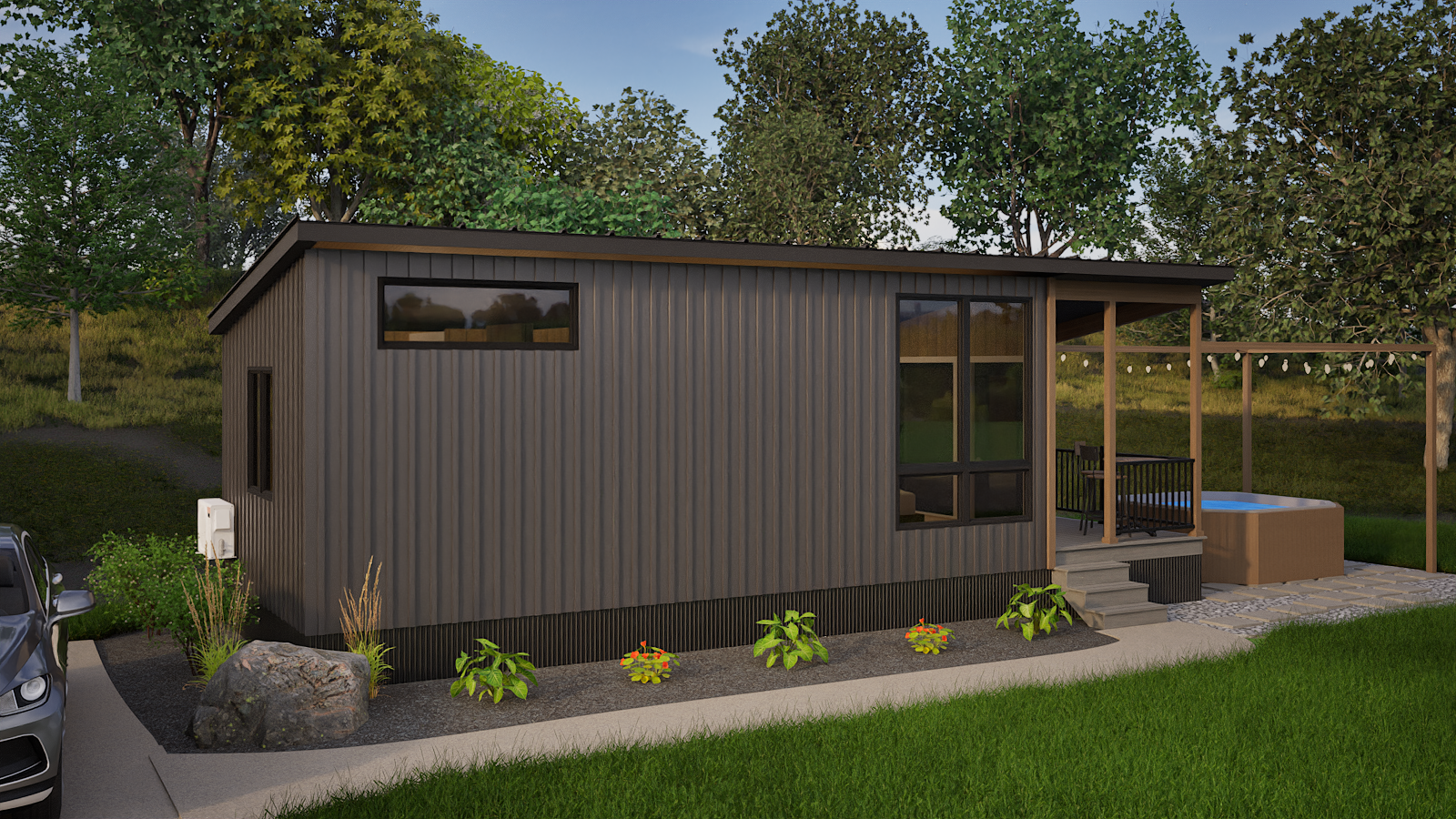

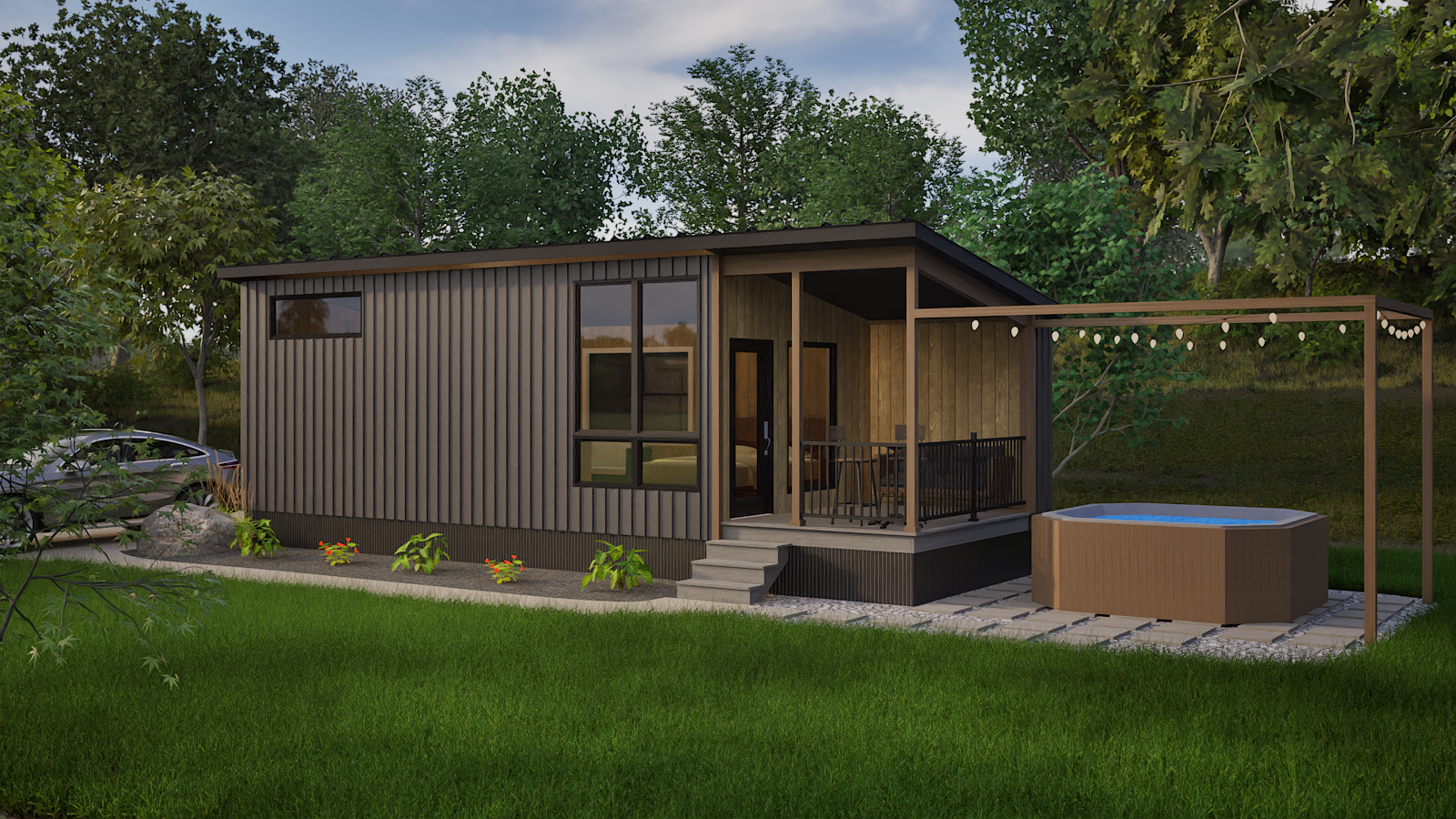

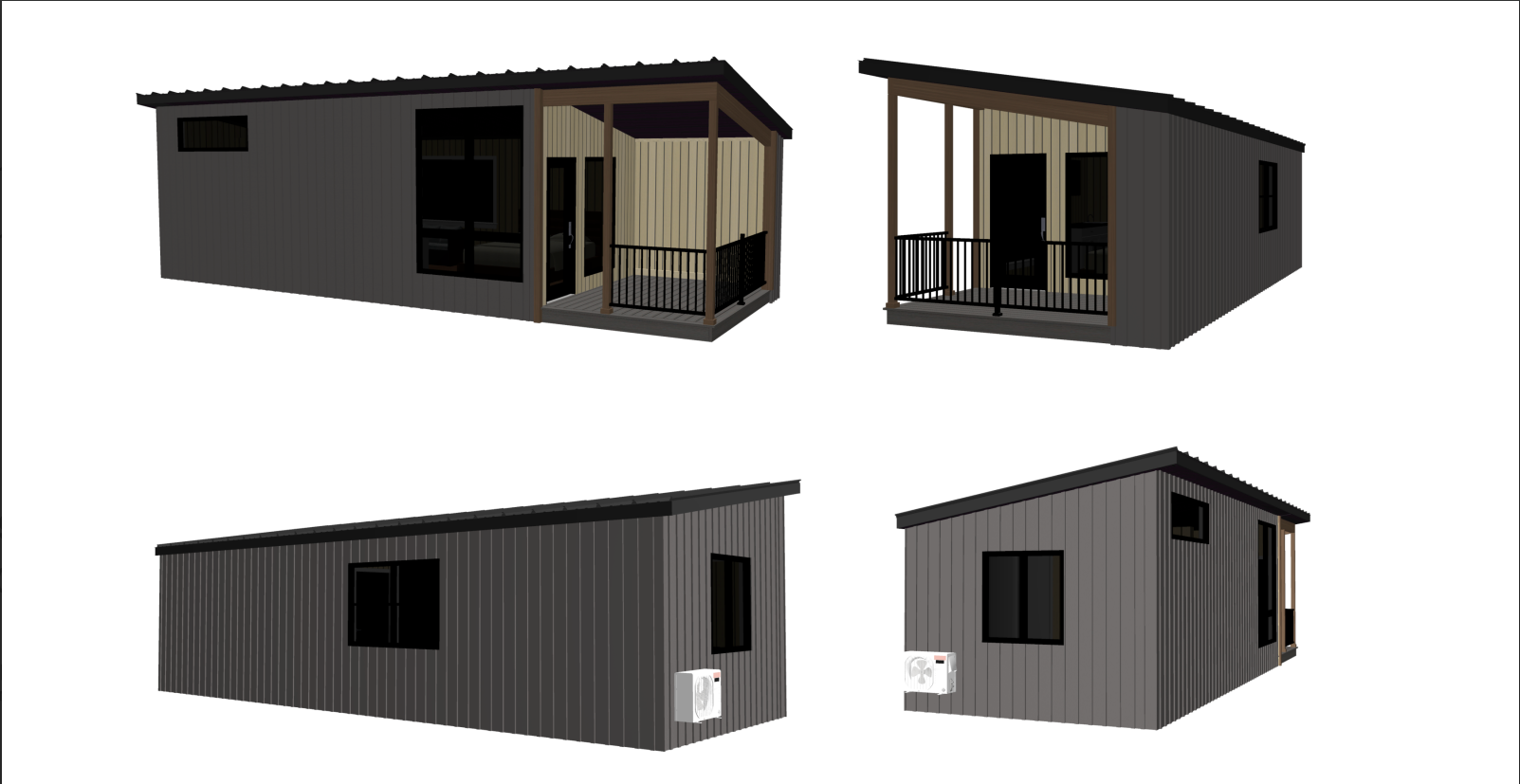

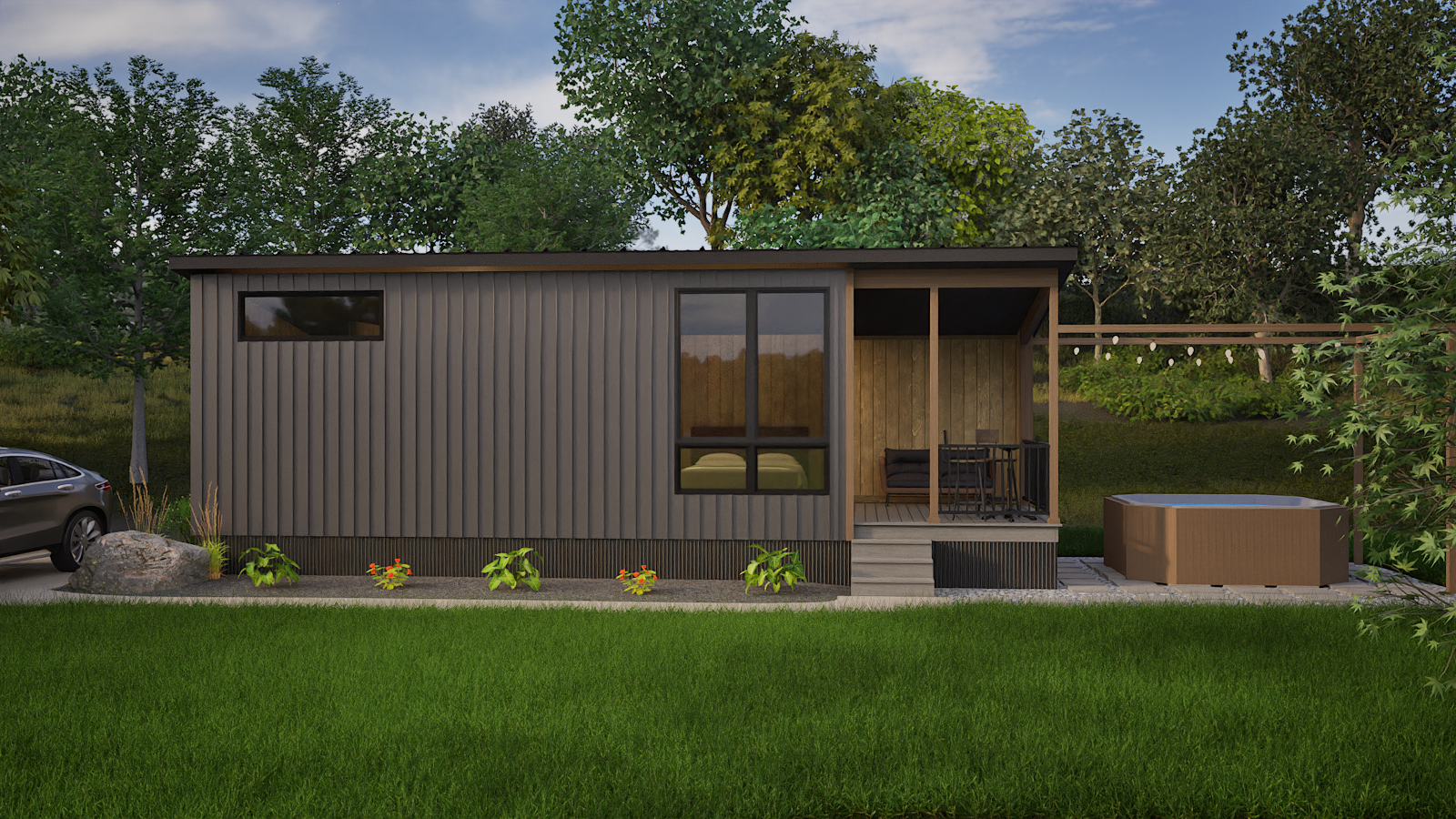

The Renegade Tiny Home/ Park Model RV

Overview

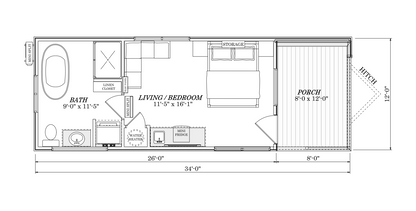

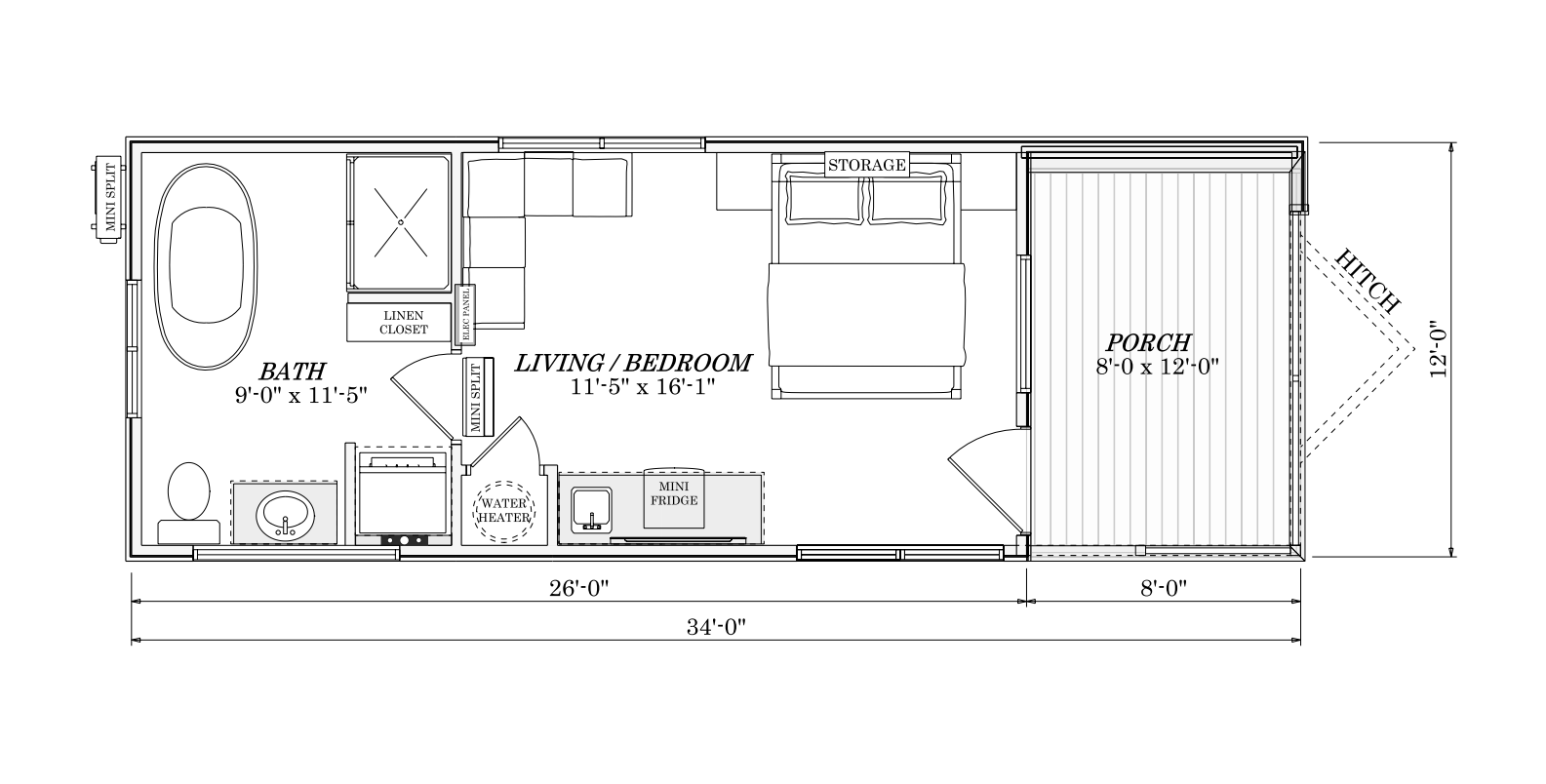

● 13’ wide x 35’’ long overall dimensions (outside overhangs)
● 12’ wide x 26’ long building dimensions = 312 sq ft
● 1 main floor bedroom
● 1 full bathroom
● 12’ x 8’ porch w/ timber frame
● RVIA Seal Built to ANSI A119.5 Standards
● Built on a Trailer/Chassis - heavy-duty steel with detachable hitch
Exterior Designs
● 28 gauge premier rib, metal siding (color TBD)
● 28 gauge, premier rib metal roof (color TBD)
● 2”x 6” roof rafters, 16” on-center w/ 1/2” OSB underlayment & ice guard
● 2”x 4” studs, 16” on-center w/ 7/16” OSB sheathing, house wrap & window/seam tape
● 2”x 6” floor joists, 16” on-center w/ 3⁄4” OSB subfloor
● Anderson 100 series, double pane single hung windows (Black)
● Painted 36” steel entry door - full glass (Black)
● Matte black door hardware w/ deadbolt
Porch
● Treated wood porch posts and beams (unfinished)
● Treated wood railing (unfinished)
● Treated wood decking floor (unfinished)
● Pine on porch/house walls (clear finish)
● Pine on ceiling (clear finish)
Insulation
● R19 closed cell spray foam insulation in the walls
● R19 closed cell spray foam insulation in the floor & ceiling
Interior Designs
● Luxury vinyl plank floor throughout (color TBD)
● Walls 1⁄2” birch plywood (painted white)
● Ceilings 1⁄2” birch plywood (painted white)

● Poplar trim package with 2 panel interior doors (painted white)
● Matte black door hardware
Kitchen Designs
● Custom birch cabinets w/ flat panel doors (painted color TBD)
● Soft close door hinges & drawer slides
● Single bowl stainless steel sink (Black)
● Laminated countertops (color TBD)
● Under the counter mini fridge (Black)
● Faucet & cabinet hardware (matte black)
Bathroom Designs
● One piece 3’ x 4’ fiberglass shower (white)
● Freestanding acrylic bathtub 60-inch
● Custom birch vanity with flat panel doors (painter color TBD)
● Cultured marble top & single bowl sink (color TBD)
● Faucets & cabinet hardware matte black
● Standard elongated toilet (white)
● Exhaust vent fan with light combo
● Vanity mirror
● Vanity light
● Towel bars, toilet paper holder (matte black)
Utilities
● Hot water tank/heater 50 gallon electric
● Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
● 1 Ceiling Fan w/ Lights (Black)
● Recessed lights throughout
● Exterior outlet w/ cover one by each entry door
● Exterior wall light one by each entry door (black)
● Frost resistant exterior faucet one on back of house
● Bosch ductless Mini Split - 1 - outside unit, 2 - inside units
● Safety features per code, fire extinguisher, smoke alarms & carbon monoxide detector
● 50 AMP breaker box w/ conduit for direct tie-In
● All plumbing drain lines ready to tie into 3” pipe
● Pex water lines ready to connect to main water supply
● Stacked laundry center - washer/dryer (white)

Add-Ons and Upgrades
● Corrugated metal exterior siding 1⁄4” ridges (color TBD) + $2,300.00
● Corrugated metal exterior roof 1⁄4” ridges (color TBD) + $800.00
● Skirting material only - corrugated metal (color TBD) + $1,650.00
● Premier legacy rib textured exterior roof (color TBD) + $500.00
● Vinyl board & batten exterior siding 8” wide (color TBD) + $3,500.00
● Log exterior half round siding (stained color TBD) + $6,900.00
● Cedar Porch walls, posts and soffit (clear finish) + $5,500.00
● Composite decking (color TBD) + $2,900.00
● Aluminum porch railing vertical spindles (black) + $1,450.00
● Pine interior trim with 2 panel solid core doors (clear finish) + $500.00
● Pine T&G interior walls (clear finish) + $4,400.00
● Pine T&G interior ceiling (clear finish) + $2,000.00
● Pine T&G interior ceiling (dark stain finish) + $2,300.00
● Poplar nickel gap interior walls (painted) + $10,700.00
● Quartz kitchenette countertops (color TBD) + $1,700.00
● Butcher block kitchen countertops stained (color TBD) + $400.00
● Butcher block bathroom countertops stained (color TBD) + $150.00
● Custom 3’ x 4’ tile shower walls (tile color TBD) + $4,800.00
● Queen bedframe with drawers for storage (painted color TBD) + $2,850.00
● Custom nightstands and headboard storage (painted color TBD) + $4,480.00
● Custom build linen closet in bathroom (painted color TBD) + $2,250.00
● Glass shower door + $1,100.00
● Incinerating toilet + $6,200.00
● Composting toilet + $4,000.00
● Anderson 100 series windows - white instead of black - $1,900.00
● Pine base & top cabinets with shaker style doors (clear finish) - $350.00
