The LONE WOLF A-Frame Tiny Home/ Park Model RV

Overview

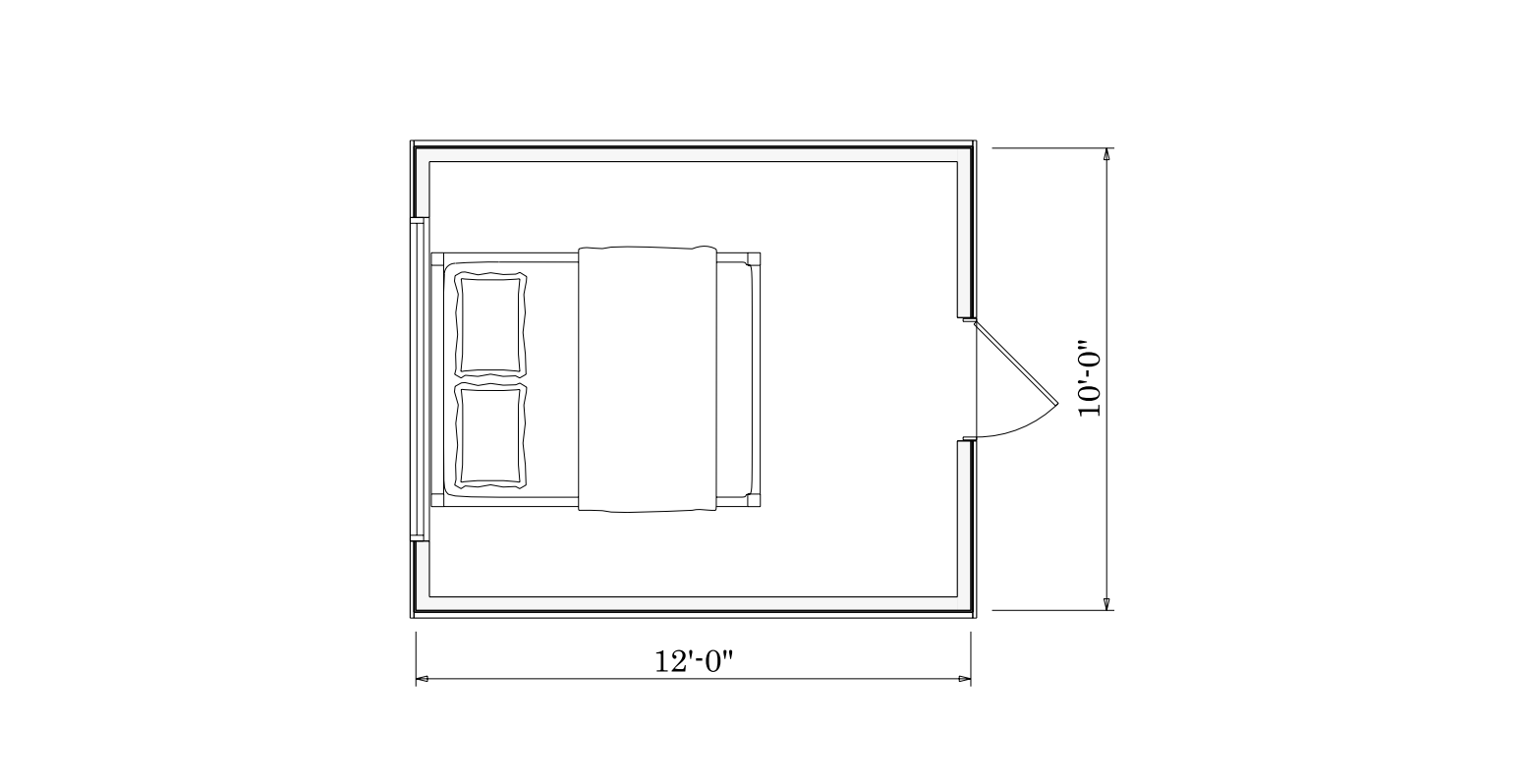

● 10’ wide x 12’ long = 120 sq. ft.
● Specifically designed with glamping in mind
● Build on skids to set on a concrete slab or a gravel pad

Exterior Design

● 28 gauge premier rib, metal siding (color TBD)
● 28 gauge, premier rib metal roof (color TBD)
● 3 ply 2” x 6” pressure treated skids
● 2” x 6” roof rafters, w/ 1/2” OSB underlayment & ice guard
● 2” x 4” studs, w/ 7/16” OSB sheathing, house wrap
● 2” x 6” floor joists, 16” on-center w/ 3⁄4” OSB subfloor

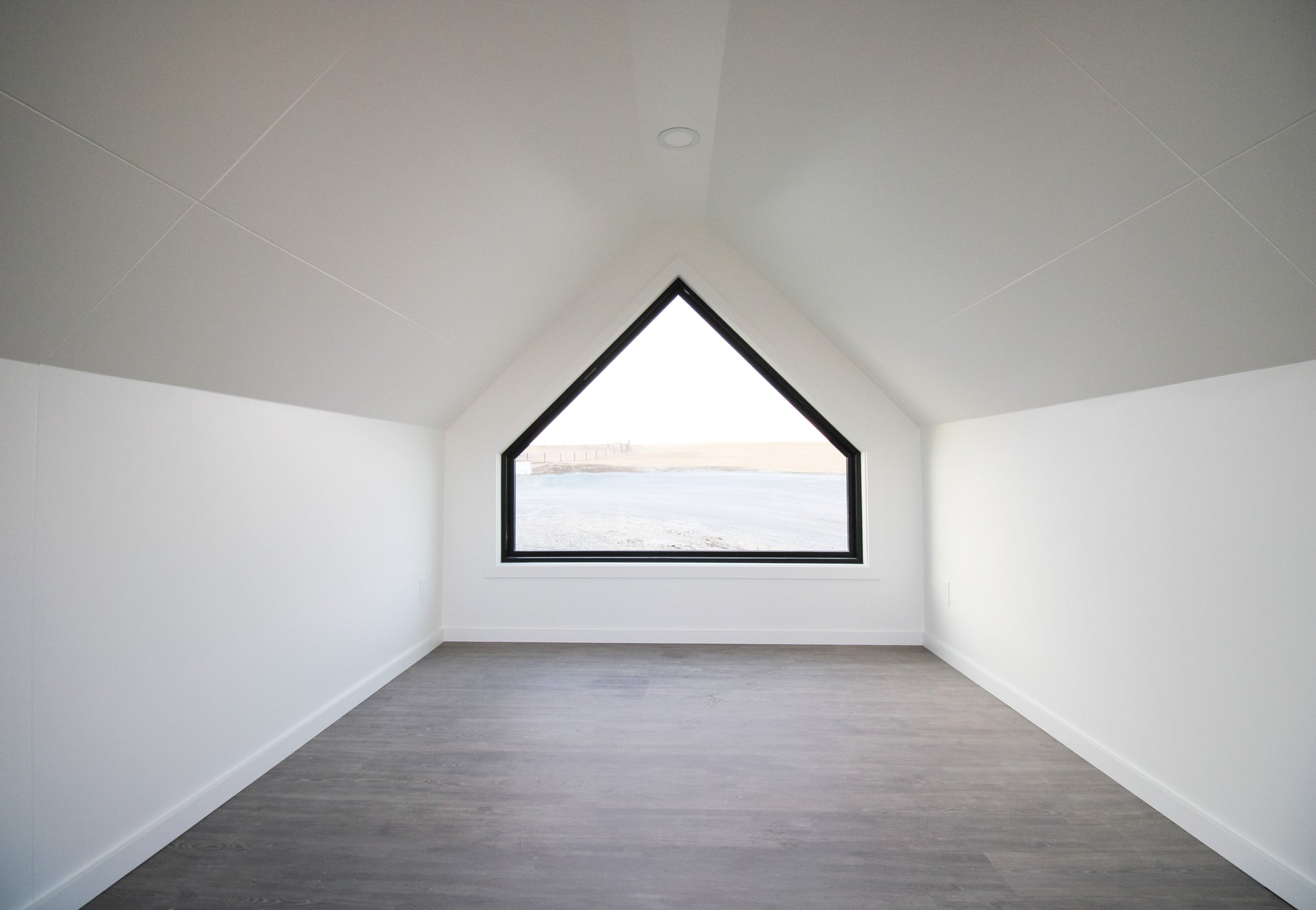

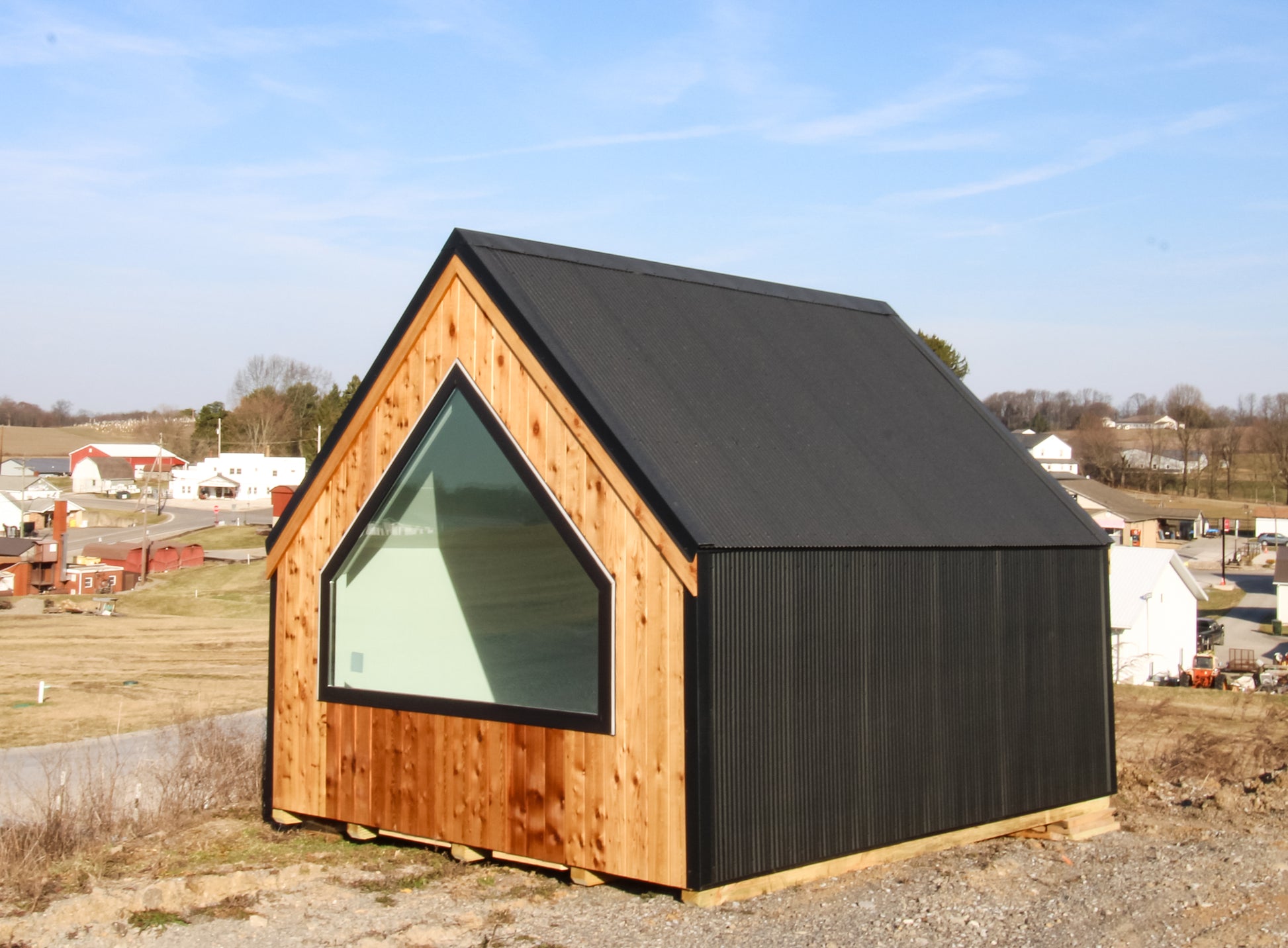

● Large custom picture window

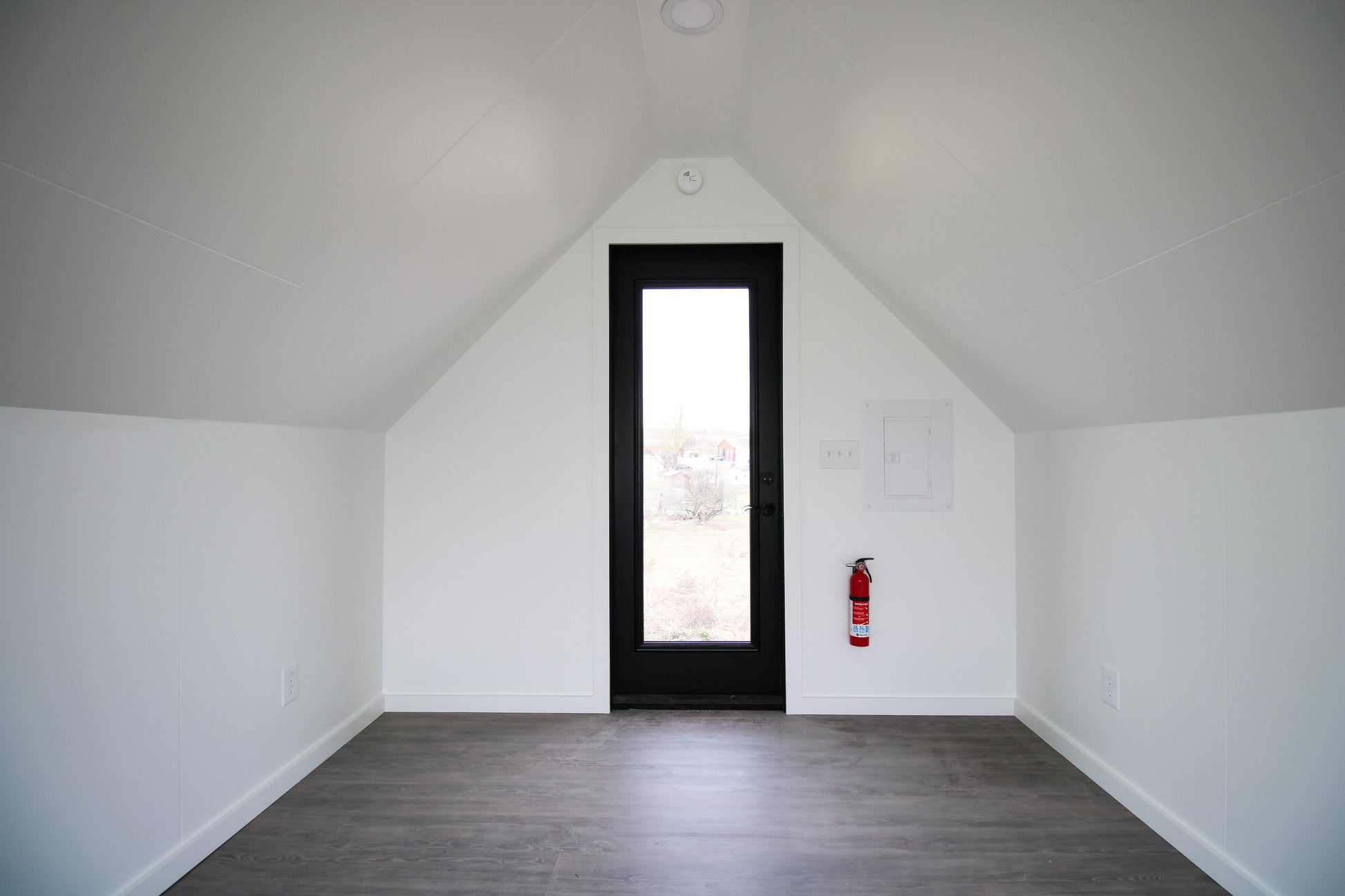

● Provia 30” full glass entry door (black)
● Matte black door hardware w/ deadbolt

Insulation

● R13 closed cell spray foam insulation in the walls
● R19 closed cell spray foam insulation in the floor & ceiling

Interior Design

● Luxury vinyl plank floor throughout (color TBD)
● Walls 1⁄2” birch plywood (painted white)
● Ceilings 1⁄2” birch plywood (painted white)
● Poplar trim package with 2 panel interior doors (painted white)

Utilities

● Standard per code Interior outlets, and switches (white covers)
● Recessed ceiling lights
● Exterior outlet w/ cover one by entry door
● Exterior wall light one by entry door (black)
● Bosch ductless Mini Split - 1 - outside unit, 1 - inside units
● Safety features per code, fire extinguisher, smoke alarms, carbon monoxide
detector
● 50 AMP breaker box w/ conduit for direct tie-In

Add-Ons & Upgrades

● Corrugated metal exterior siding 1⁄4” ridges (color TBD) + $950.00
● Corrugated metal exterior roof 1⁄4” ridges (color TBD) + $750.00
● Premier legacy rib textured exterior roof + $550.00
● Log exterior half round siding (stained color TBD) + $4,500.00

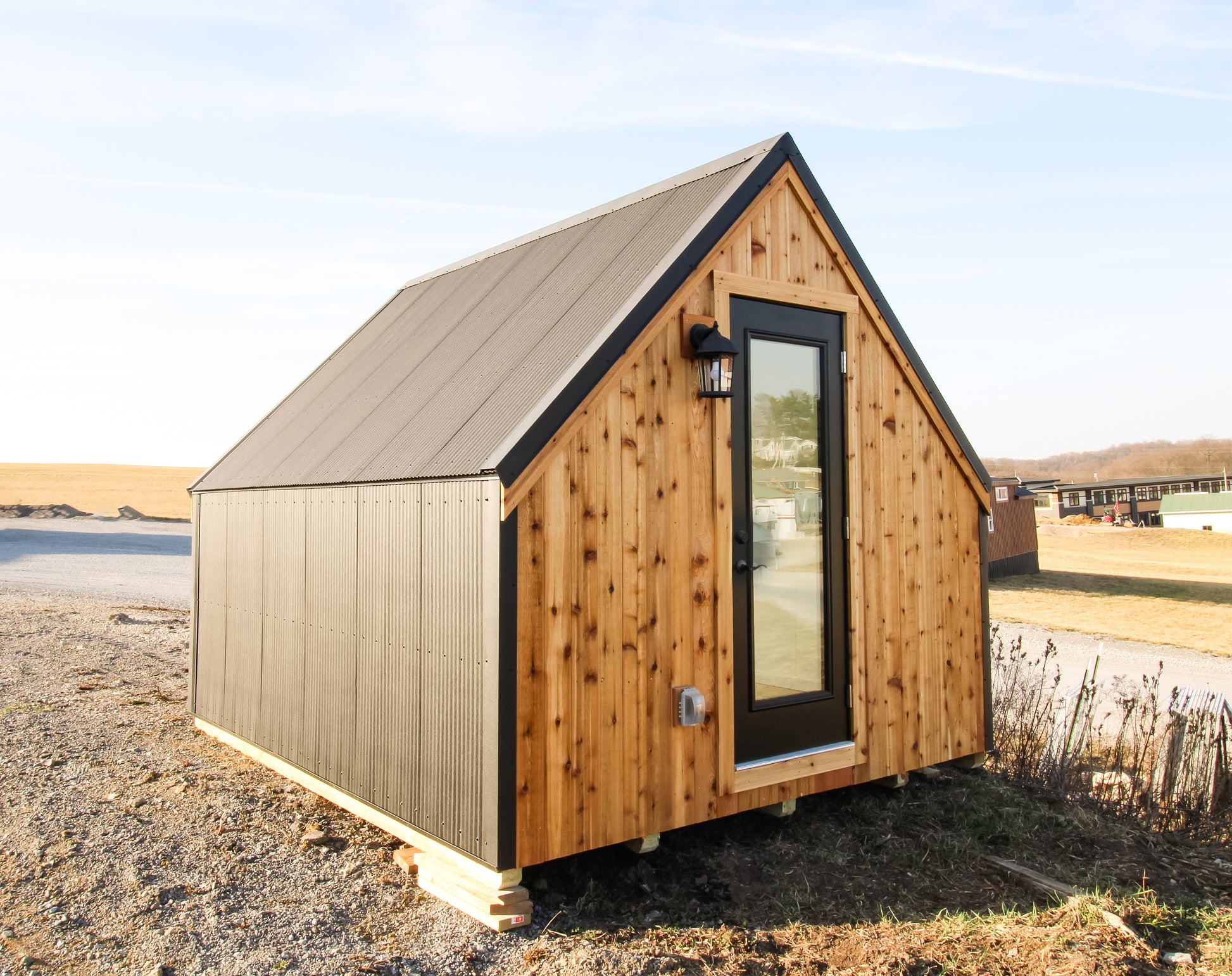

● Cedar accent on front wall exterior + $2,250.00
● Cedar accent on back wall exterior + $2,250.00
● Pine T&G interior walls (clear finish) + $3,150.00
● Pine T&G interior ceiling (clear finish) + $1,900.00
● Pine T&G interior ceiling (dark stain finish) + $2,200.00
● Poplar nickel gap interior walls (painted color TBD) + $4,100.00
● Queen bedframe with hydraulic lift for storage (painted color TBD) + $2,250.00
● Queen bedframe with drawers for storage (painted color TBD) + $4,300.00
● Two skylights one on each side + $1,600.00
