The Blazer Tiny Home/ Park Model RV

Overview

● 8’5” wide x 42’3”’ long overall dimensions (outside overhangs)

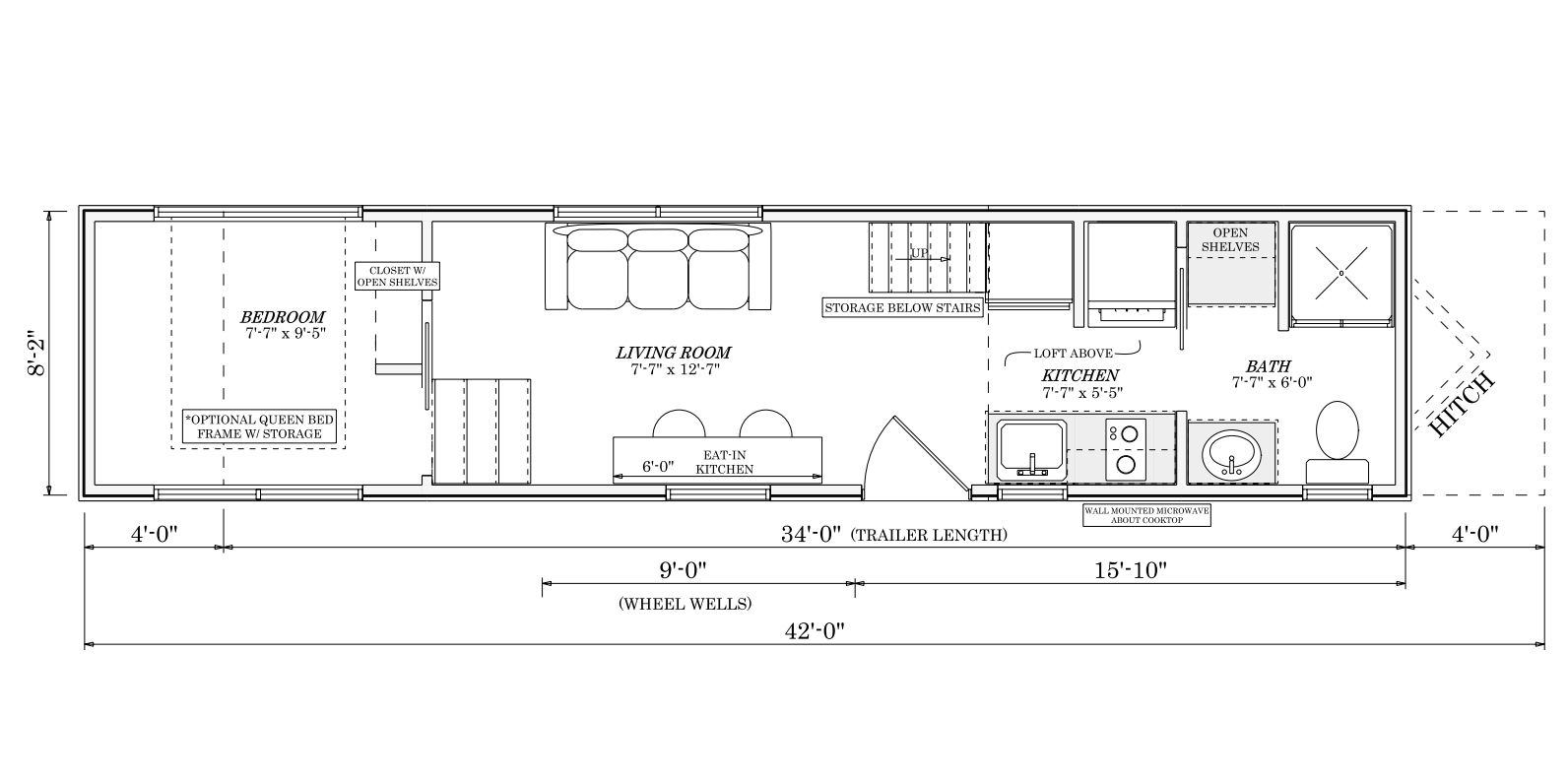

● 8’2” wide x 42’ long building dimensions = 340 sq ft
● 1 main floor bedroom

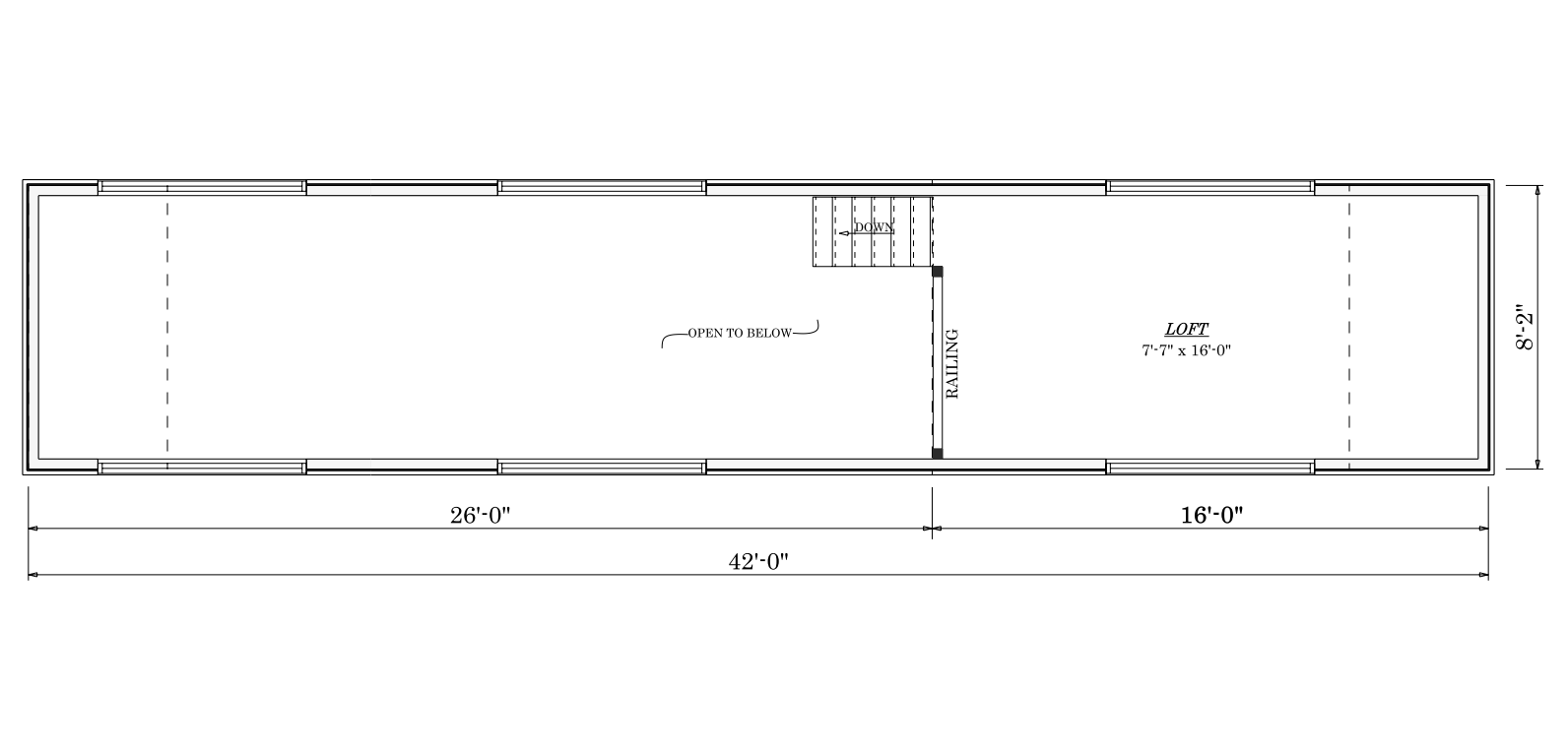

● Loft 8’ x 16’
● 1 full bathroom
● Sleeps up to 4 people
● RVIA Seal Built to ANSI A119.5 Standards
● Built on a Trailer/Chassis - heavy-duty steel with detachable hitch

Exterior Designs

● 28 gauge, premier rib metal siding (color TBD)
● 28 gauge, premier rib metal roof (color TBD)
● 2”x 6” roof rafters, 24” on-center w/ 1/2” OSB underlayment & ice guard
● 2”x 4” studs, 16” on-center w/ 7/16” OSB sheathing, house wrap & window/tape
● 2”x 6” floor joists, 16” on-center w/ 3⁄4” OSB subfloor
● Anderson 100 series, double pane single hung windows (Black)
● Provia 36” full glass entry door (black)
● Matte black door hardware w/ deadbolt
● Storage below master bedroom w/ 2 access doors from the outside

Insulation

● R13 closed cell spray foam insulation in the walls
● R19 closed cell spray foam insulation in the floor & ceiling

Interior Designs

● Luxury vinyl plank floor throughout (color TBD)
● Walls 1⁄2” birch plywood (painted white)
● Ceilings 1⁄2” birch plywood (painted white)
● Poplar trim package with 2 panel interior doors (painted white)
● Matte black door hardware
● Steps to raised bedroom
● Steps to loft bedroom w/ handrail
● Open shelf closet in master bedroom

Kitchen Designs

● Custom base & top cabinets with flat panel plywood doors (painted color TBD)
● Soft close door hinges & drawer slides
● Single bowl drop in sink (color TBD)
● Laminated countertops (color TBD)
● Faucet & cabinet hardware (matte black)
● Mid size refrigerator (color black)
● 2 burner induction cooktop
● Stacked laundry center - washer/dryer
● 6′ built-in eating bar
● Built-in storage beneath stairway

Bathroom Designs

● Custom vanity with flat panel doors (painted color TBD)
● Cultured marble top & single bowl sink (color TBD)
● Custom water heater cabinet with storage (painted color TBD)
● One piece 3’ x 3’ fiberglass shower (white)
● Faucets & cabinet hardware matte black
● Standard elongated toilet (white)
● Exhaust vent fan with light combo
● Vanity mirror
● Vanity light
● Towel bars, toilet paper holder (matte black)

Utilities

● Hot water heater 19 gallon tank electric
● Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
● 2 Ceiling Fans w/ Lights (Black)
● Recessed lights throughout
● Exterior outlet w/ cover one by each entry door
● Exterior wall light one by each entry door (black)
● Frost resistant exterior faucet one on back of house
● Bosch ductless Mini Split - 1 - outside unit, 2 - inside units
● Safety features per code, fire extinguisher, smoke alarms & carbon monoxide
detector
● 100 AMP breaker box w/ conduit for direct tie-In
● All plumbing drain lines ready to tie into 3” pipe
● Pex water lines ready to connect to main water supply

Add-Ons & Upgrades

● Corrugated metal exterior siding 1⁄4” ridges (color TBD) + $1,550.00
● Corrugated metal exterior roof 1⁄4” ridges (color TBD) + $950.00
● Premier legacy rib textured exterior roof + $600.00
● Skirting material only - corrugated metal (color TBD) + $1,800.00
● Vinyl board & batten exterior siding 8” wide (color TBD) + $3,300.00
● Log exterior half round siding (stained color TBD) + $6,800.00
● Exterior steps treated wood + $1,300.00
● Pine trim with 2 panel solid core doors (clear finish) + $500.00
● Pine T&G interior walls (clear finish) + $7,000.00
● Pine T&G interior ceiling (clear finish) + $2,550.00
● Pine T&G interior ceiling (dark stain finish) + $2,700.00
● Poplar nickel gap interior walls (painted color TBD) + $14,600.00
● Aluminum loft and stair railing + $1,800.00
● Quartz kitchen countertops (color TBD) + $1,650.00
● Butcher block kitchen countertops stained (color TBD) + $400.00
● Butcher block bathroom countertops stained (color TBD) + $150.00
● Tile backsplash kitchen (subway tile white) $1,950.00
● Queen bedframe with hydraulic lift for storage (painted color TBD) + $2,250.00
● Queen bedframe with drawers for storage (painted color TBD) + $4,300.00
● Custom bedroom headboard built-in 84” tall (painted color TBD) + $6,000.00
● Custom wardrobe bedroom built-in 24” x 60” (painted color TBD) + $3,100.00
● Custom 3’ x 4’ tile shower w/ glass door (tile color TBD) + $5,700.00
● On-demand gas tankless water heater + $1,250.00
● Incinerating toilet and installation + $6,200.00
● Composting toilet and installation + $4,000.00
● Anderson 100 series windows - white instead of black - $2,300.00
● Custom pine base cabinets instead of painted (clear finish) - $650.00
