AROD The A-Frame Tiny Home/ Park Model RV

Overview

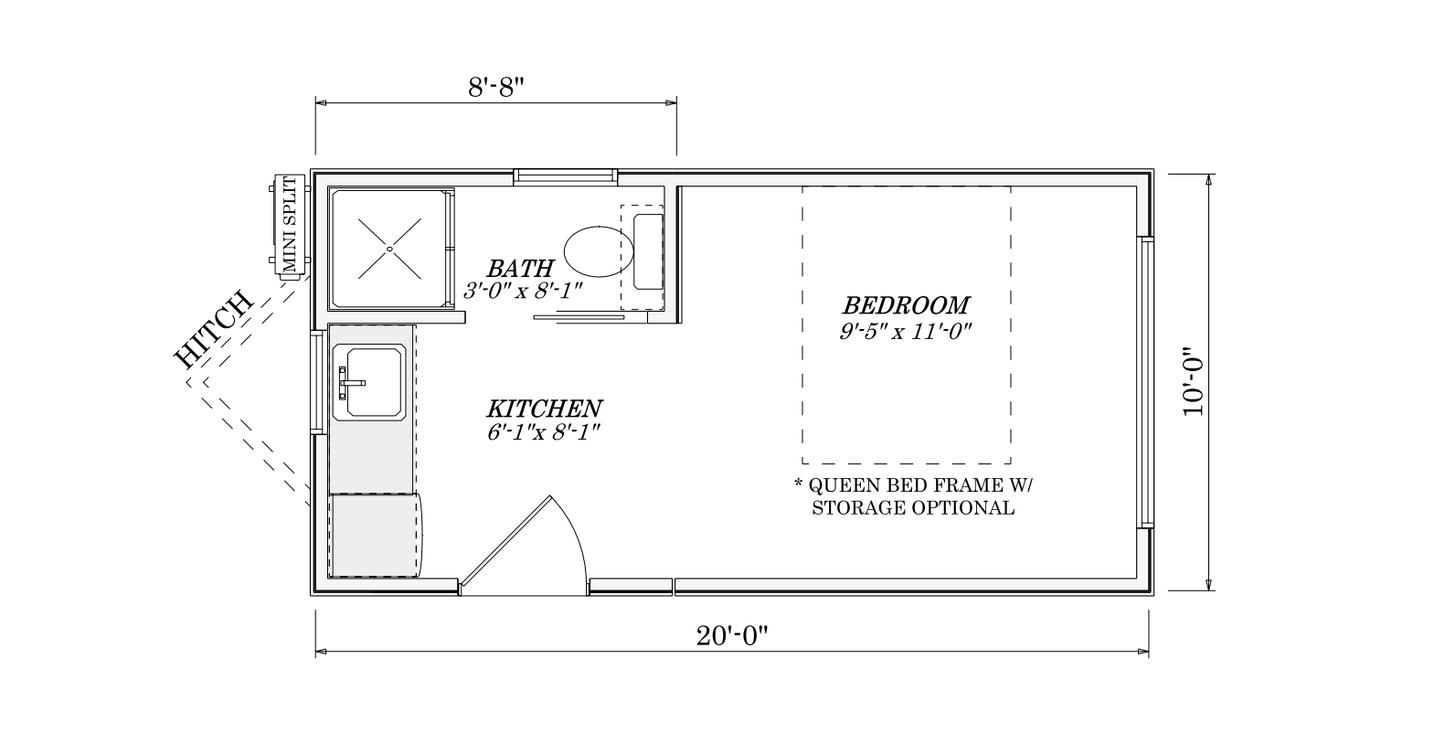

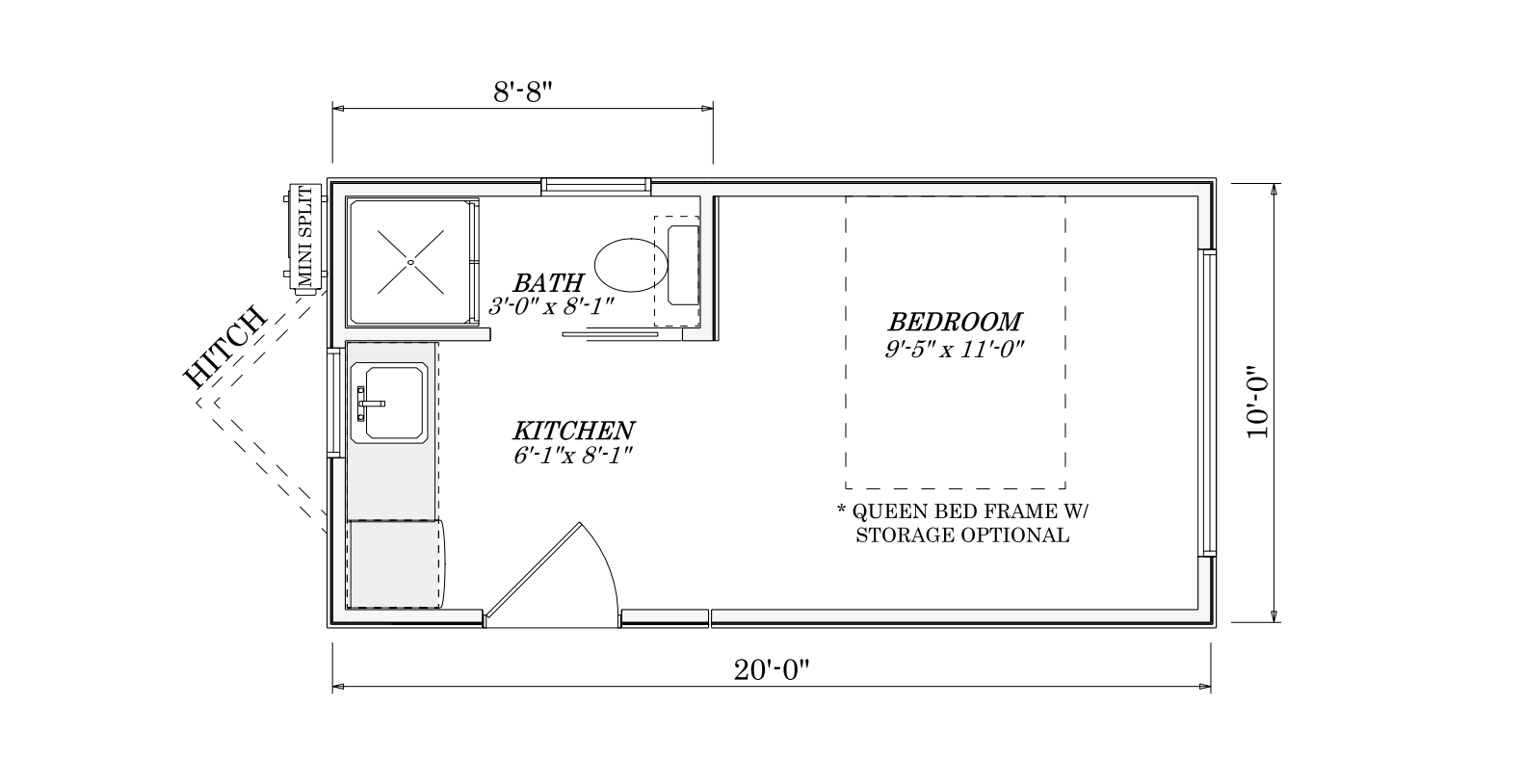

● 10’ wide x 20’ long = 200 sq. ft.
● 1 full bathroom
● Kitchenette and bedroom area
● RVIA seal built to ANSI A119.5 standards
● Built on a Trailer/Chassis - heavy-duty steel with detachable hitch
● Can easily be designed built with skids and no chassis
● Specifically designed with glamping in mind

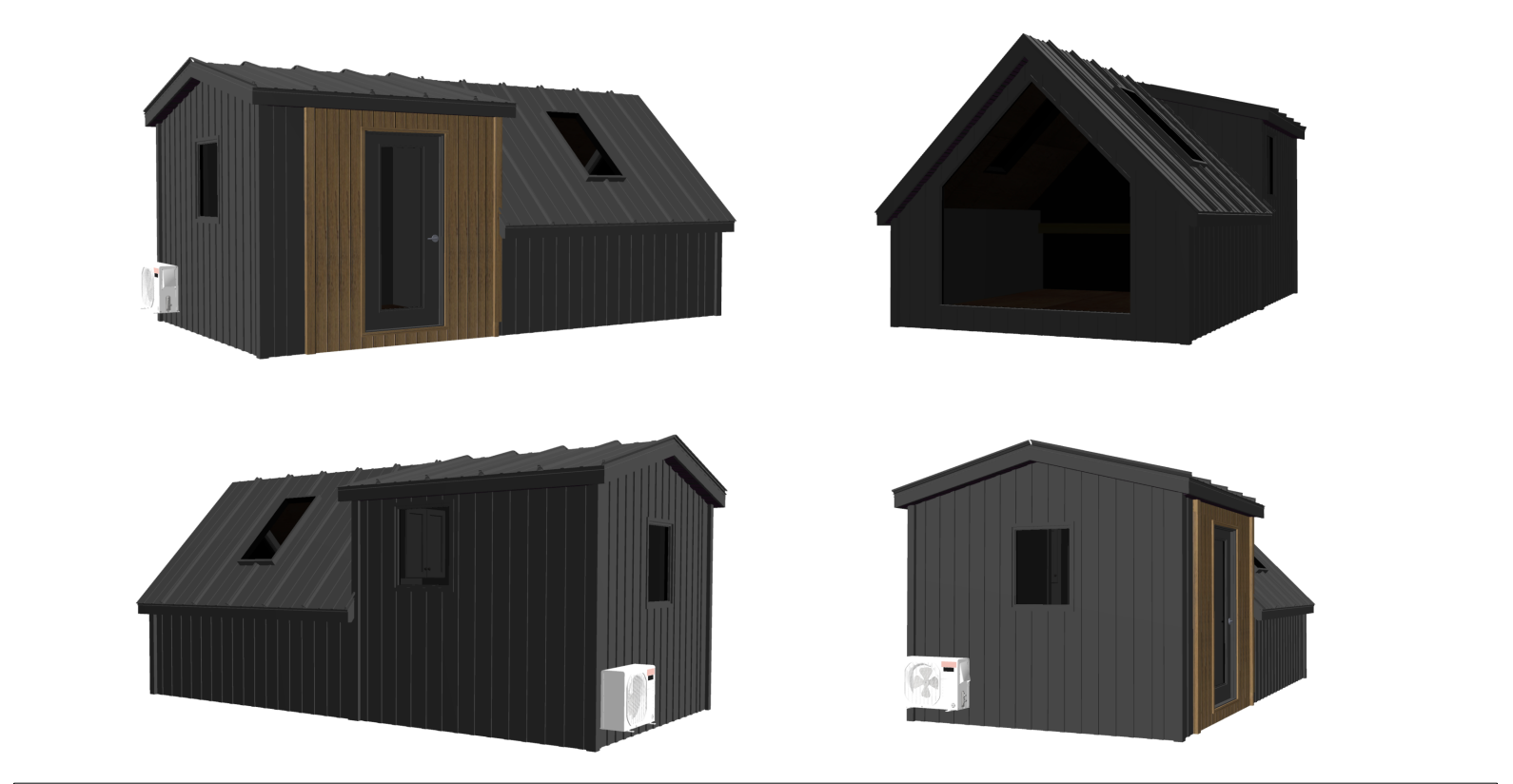

Exterior Design

● 28 gauge premier rib, metal siding (color TBD)
● 28 gauge, premier rib metal roof (color TBD)
● 2”x 6” roof rafters, 24” on-center w/ 1/2” OSB underlayment & ice guard
● 2”x 4” studs, 16” on-center w/ 7/16” OSB sheathing, house wrap & window/tape
● 2”x 6” floor joists, 16” on-center w/ 3⁄4” OSB subfloor
● Anderson 100 series, double pane single hung windows (Black)
● Large custom windows on A-Frame end
● Cedar wood accents wall by entry door (clear finish)
● Full glass entry door (black)
● Matte black door hardware w/ deadbolt
● 2 – 24” x 36” skylights

Interior Design

● Luxury vinyl plank floor throughout (color TBD)
● Walls & ceiling 1⁄2” birch plywood (painted white)
● Poplar trim package with 2 panel doors (painted white)
● Matte black door hardware

Insulation

● R13 closed cell spray foam insulation in walls
● R19 closed cell spray foam insulation in Floors & Ceiling

Kitchen Designs

● Custom cabinets w/ flat panel doors (painted color TBD)
● Soft close door hinges & drawer slides
● Single bowl sink (stainless steel)
● Laminated countertops (color TBD)
● Faucet & cabinet hardware (matte black)
● Under the counter mini fridge (black)
● Countertop microwave (black)

Bathroom

● Fiberglass 1 piece shower 3’ x 3’ (white)
● Shower faucet matte black
● Standard elongated toilet (white)
● Exhaust fan with light combo
● Towel bars, toilet paper holder (matte black)
● Custom wall cabinet above the toilet (painted color TBD)

Utilities

● Tankless electric hot water heater
● Standard per code Interior outlets, switches, and GFCI receptacle (white covers)
● Recessed lights
● Exterior outlet w/ cover one by entry door
● Exterior wall light one by entry door (black)
● Frost resistant exterior faucet one on back of house
● Bosch ductless Mini Split - 1 outside unit & 1 inside unit
● Safety features per code, fire extinguisher, smoke alarms & carbon monoxide
detector
● 100 AMP breaker box w/ conduit for direct tie-In
● All plumbing drain lines ready to tie into 3” pipe
● Pex water lines ready to connect to main water supply

Add-Ons & Upgrades

● Corrugated metal exterior siding 1⁄4” ridges (color TBD) + $1,000.00
● Corrugated metal exterior roof 1⁄4” ridges (color TBD) + $850.00
● Skirting material only - corrugated metal (color TBD) + $1,200.00
● Premier legacy rib textured exterior roof + $550.00
● Vinyl board & batten exterior siding 8” wide (color TBD) + $2,700.00
● Log exterior half round siding (stained color TBD) + $4,600.00
● Pine interior trim with 2 panel solid core doors (color TBD) + $200.00
● Pine T&G interior walls (clear finish) + $3,900.00
● Pine T&G interior ceiling (clear finish) + $2,000.00
● Pine T&G interior ceiling (dark stain finish) + $2,400.00
● Poplar nickel gap interior walls (painted) + $6,250.00
● Quartz kitchen countertops (color TBD) + $1,700.00
● Butcher block kitchen countertops stained (color TBD) + $250.00
● Incinerating toilet + $6,200.00
● Composting toilet + $4,000.00
● Deck with steps 4’x10’ Treated wood (unfinished) + $1,800.00
● Cedar accent wall around entry door (clear finish) + $1,500.00
● Anderson 100 series windows - white instead of black - $1,200.00
● Pine cabinets (clear finish) instead of custom painted - $250.00
